Aimlite Steel LED EXIT, SORTIE Signs

View All Product Models

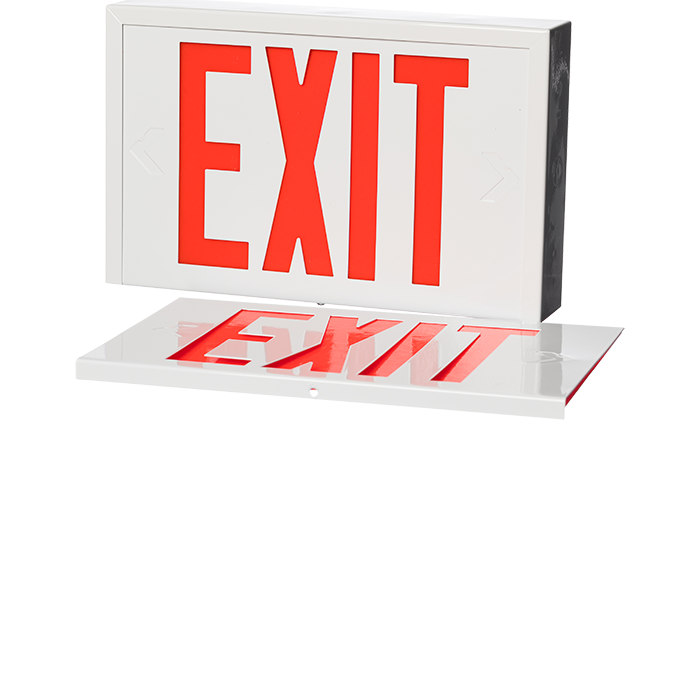

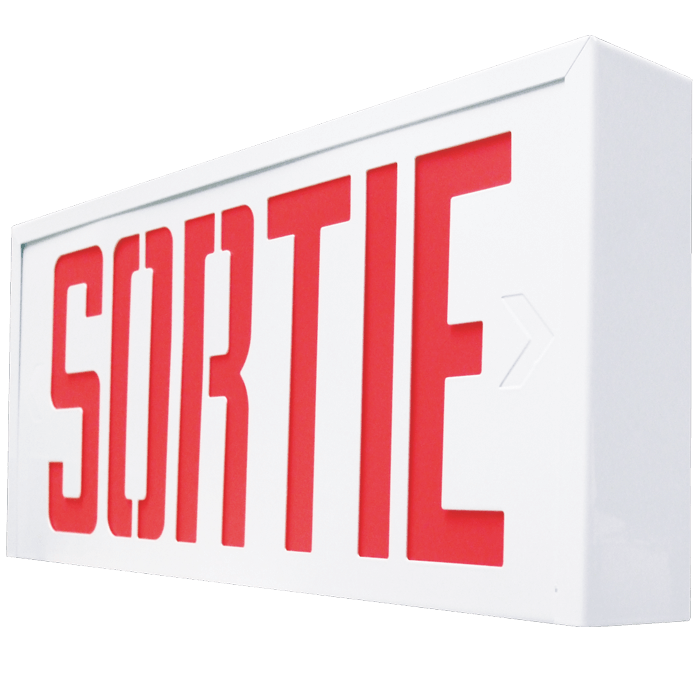

The EXST/SXST series of commercial steel signs features a slim profile that eliminates light leaks, combined with a simple easy to install design. Available in AC/DC and internally self-powered versions.

Features:

NRCan C860 Approved
CSA Certified to C22.2 #141.15 and C860
LED 120/347VAC Input, field selectable
LED Ultra Bright Light Source

Circuitry – AC & AC/DC
• 1.9W power consumption single or double face
• Emergency DC wattages 6VDC = 1.3W, 12VDC = 1.7W, 24VDC = 3.5W

Circuitry – Self-Powered
• 4W power consumption single or double face
• High-performance, sealed Ni-Cad battery
• 90 minutes emergency duration
• Solid state transfer and battery charger

Mechanical
• 20 Gauge steel construction
• Slide out faceplates and backplates for rapid and simple installation
• snap out directional chevrons/arrows
• Universal spider knockout pattern stamped into backplate for junction box mounting
• Includes ceiling or end mount, field installable canopy kit c/w spider plate
• Multiple conduit entry knockouts
