3/4” Quick Release Nitrogen Valve with 4000 PSI Gauge

SKU :
N200QR4
PRODUCT SPECIFICATIONS
DESCRIPTION
PRODUCT SPECIFICATIONS

3/4” Quick Release Nitrogen Valve with 4000 PSI Gauge for Dry Chemical Wheeled Units

This valve is intended for use on Department of Transportation (DOT) cylinders, excluding Type DOT-4L cylinders, charged with nitrogen not exceeding 2,640 PSI. The valves include a listed

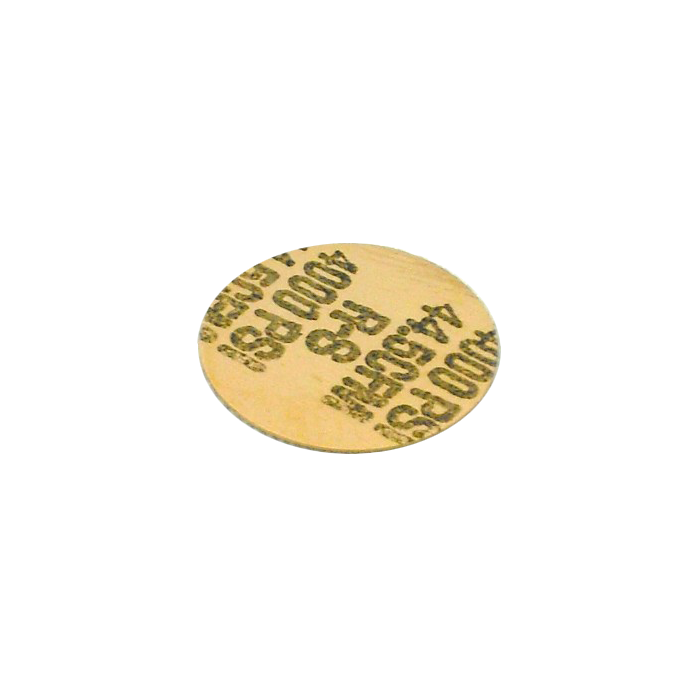

high pressure gauge. Each valve is provided with a rupture disc device, Type CG-1, which is a non-reclosing pressure-relief device actuated by inlet static pressure, and designed to release excess
pressure of a normal charged cylinder, when exposed to abnormal conditions, by bursting a pressure containing disk. The relief device has been investigated in accordance with the Compressed Gas Associate (CGA) Pressure Relief Device Standard S-1.1, Part 1, Cylinders for Compressed Gases, for use on non-insulated DOT cylinders for non-liquefied gases, not exceeding 146.9 lb, Model N200QR4, water capacity.

Model N200QR4 is designed to burst at a maximum pressure of 4000 psig at 160°F.

- UL Listed (File# MH13426)
- 3/4" Quick Release Nitrogen Valve
- 4,000 PSI Gauge
- Burst Pressure 4,000 PSI
- Maximum working pressure 2,640 PSI
- Outlet connection: female CGA 580 (0.965-14 NGO R.H. Thread)
- Inlet base connection: Male 3/4 -14 NGT
